Modes: F1D, F2D, F3E
Channel spacing: 25 / 20 / 12.5 kHz
Steps: 2.5-100 kHz
Deviation: ±5 / ±2.5 kHz
Spurious: -60 dB or less
Mic 2 kohm, data port 10 kohm
Operating temperature: -20 to +60 °C
Another official table lists extra RX bands (AM broadcast, SW, airband) and 222-225 MHz TX for some versions
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- Sensitivity
- 0.2 µV or less (12 dB SINAD)
- Selectivity
- Wide: 12 kHz or more (-6 dB), 30 kHz or less (-60 dB)
Narrow: 10 kHz or more (-6 dB), 24 kHz or less (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 2 W (8 ohm, 10%)
Transmitter
- TX-range
- 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 50 W (144 MHz) / 30 W (430 MHz)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-24 V DC +15%, negative ground
- Current drain RX
- 0.5 A standby
- TX
- 8.5 A (144 MHz), 8.0 A (430 MHz)
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options

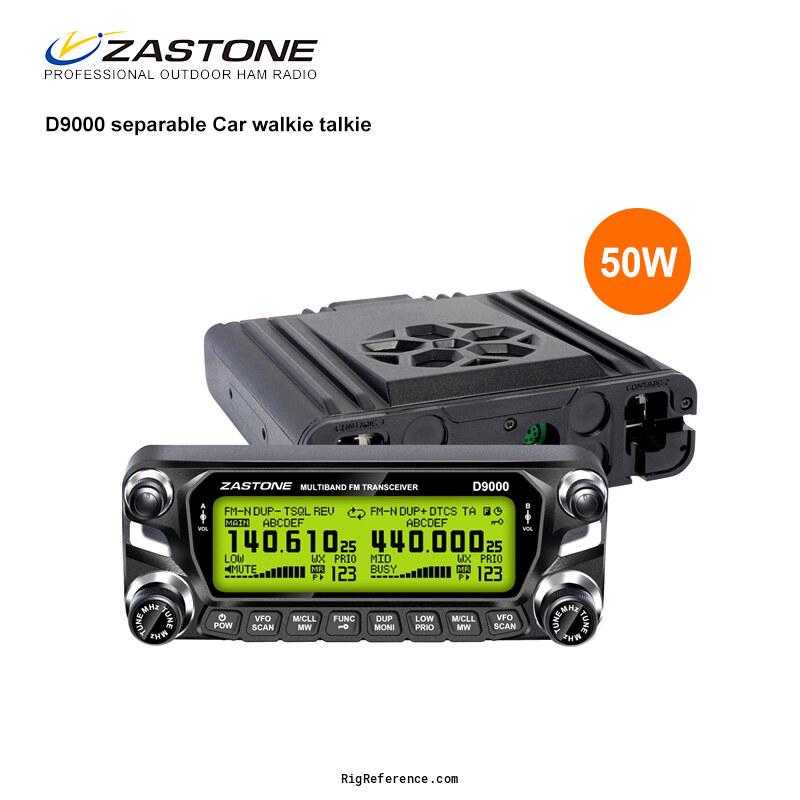

- Dual-band mobile
50 W
Bluetooth microphone option

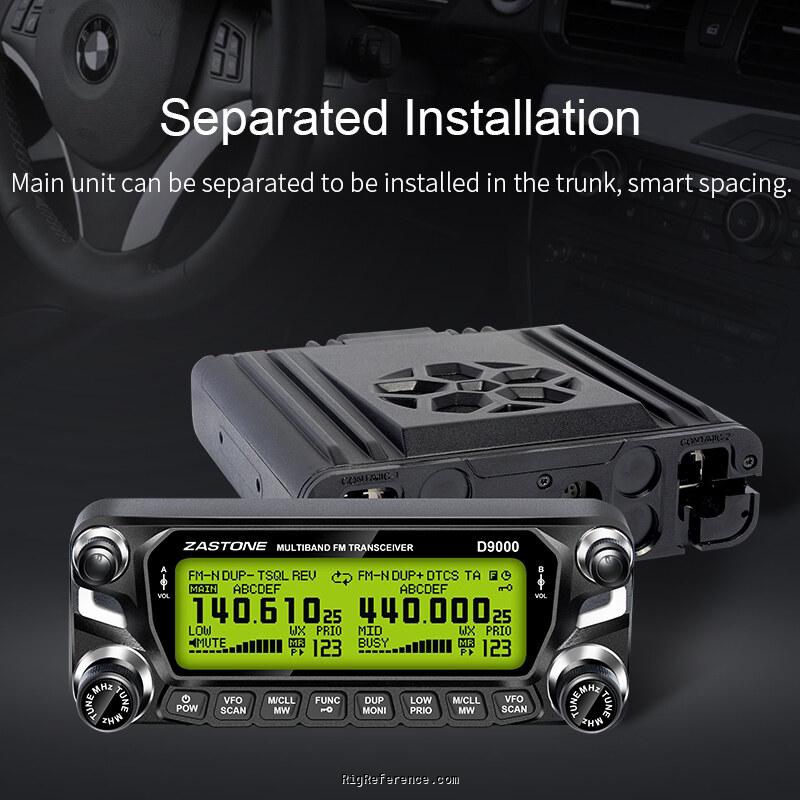

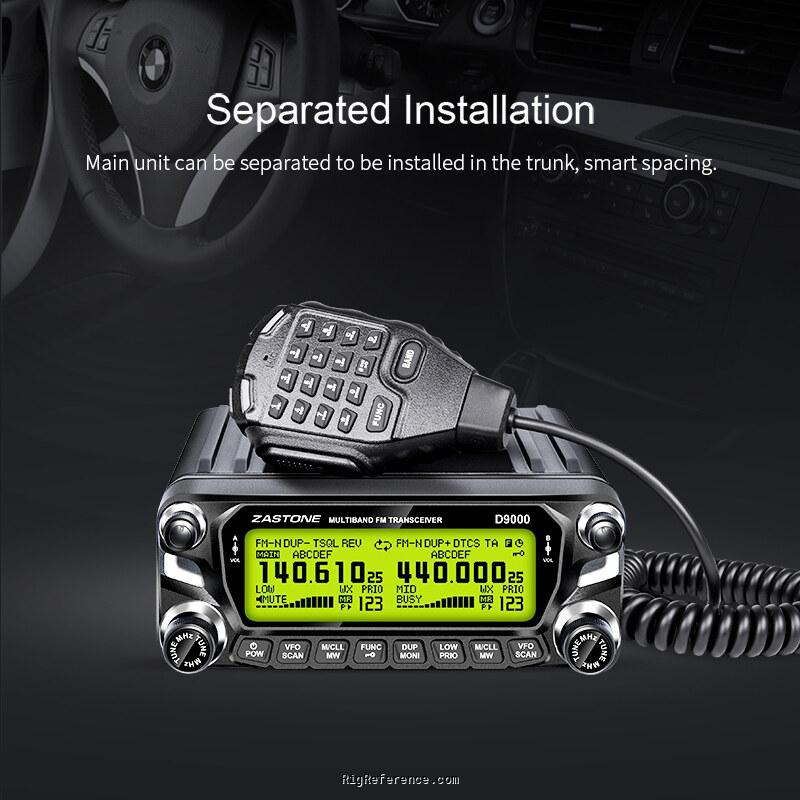

Separated panel installation
Dual RF power amplifier - Accessories
- -
- RigReference ID
- 6795
- MPN
- ZASTONE-D009000
