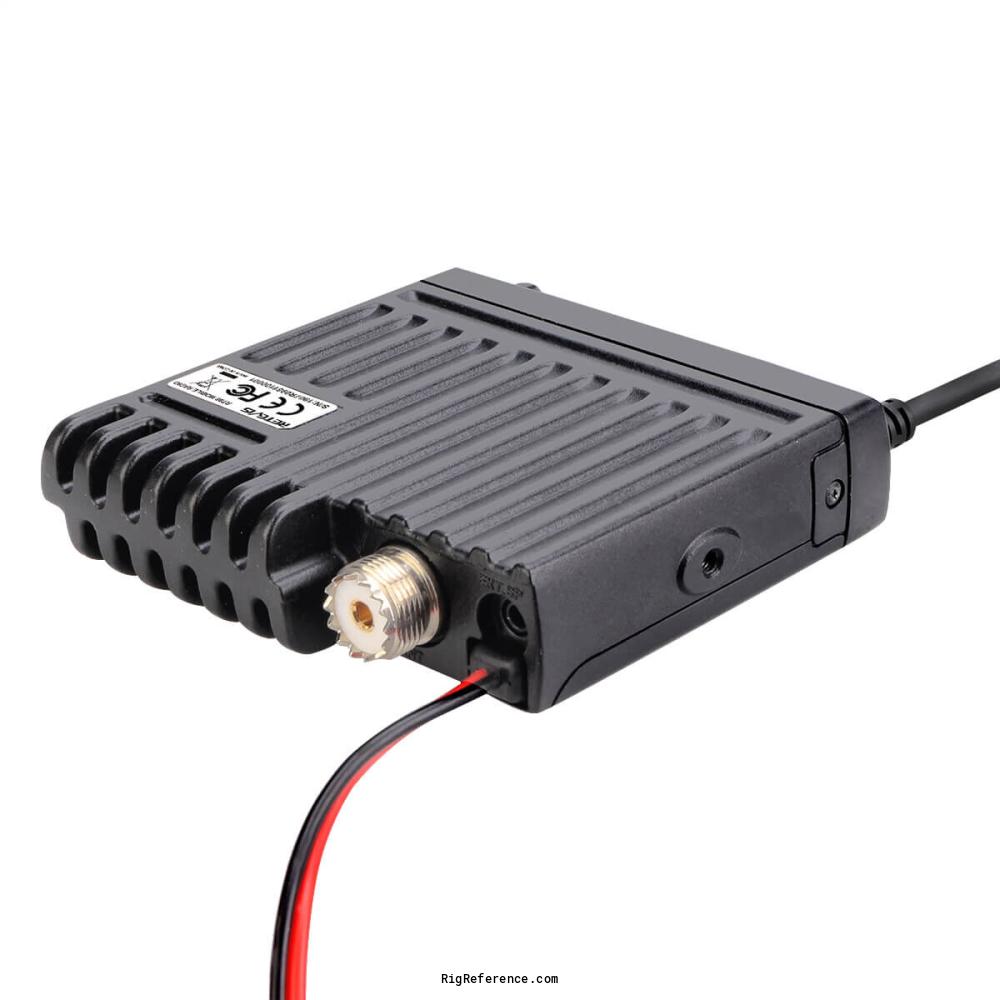

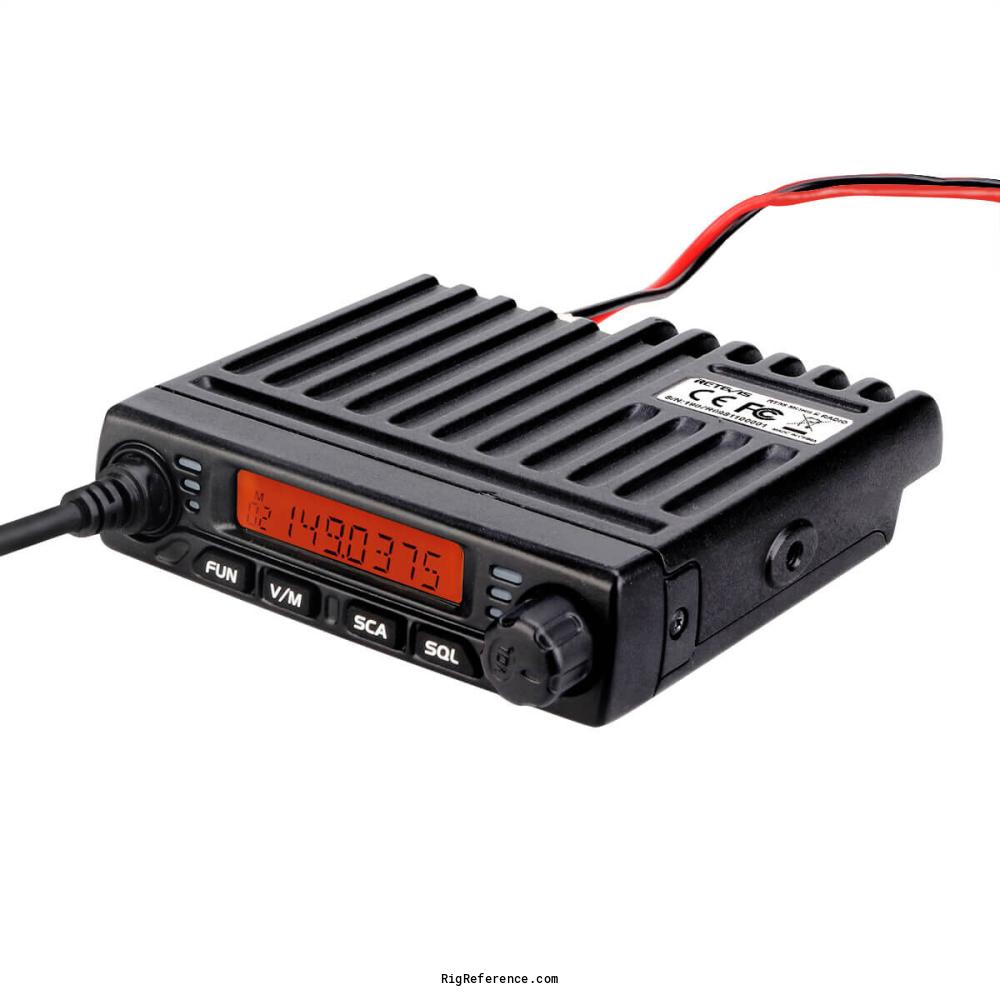

Retevis RT98

General characteristics

HAM bands

2m

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

199 channels in bank(s)

Receiver

RX-range

136-174 MHz

Modulations

FM   N-FM

Sensitivity

0.25 µV (wide) / 0.35 µV (narrow), 12 dB SINAD

Selectivity

Adjacent channel: 60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

More than 2 W (16 ohm), distortion 5% or less

Transmitter

TX-range

136-174 MHz

Modulations

FM   N-FM

RF-output

15 / 10 / 5 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

13.8 V DC ±15%

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

100 × 24 × 106 mm (3.94 × 0.94 × 4.17 in)

Weight

434 gr (15.3 oz)

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Mini VHF FM mobile
VFO mode
CTCSS / DCS

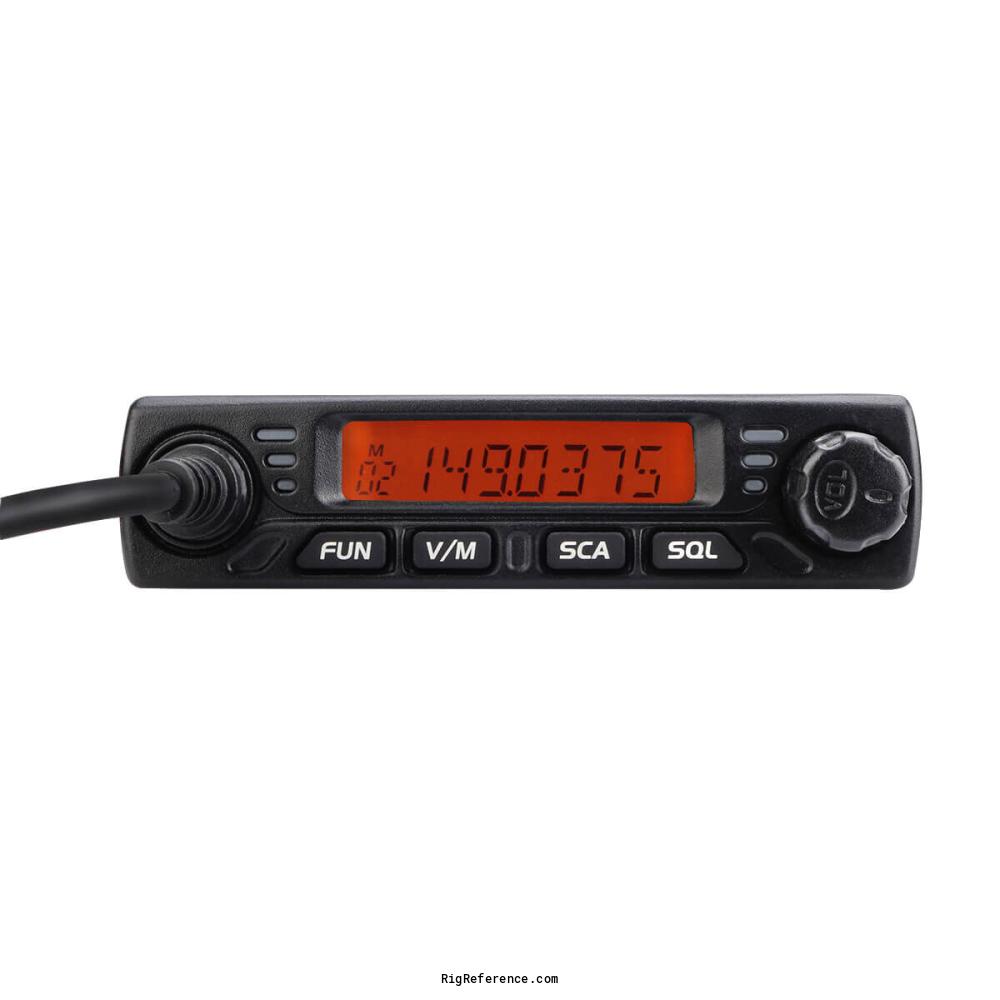

LCD display
Cooling fan

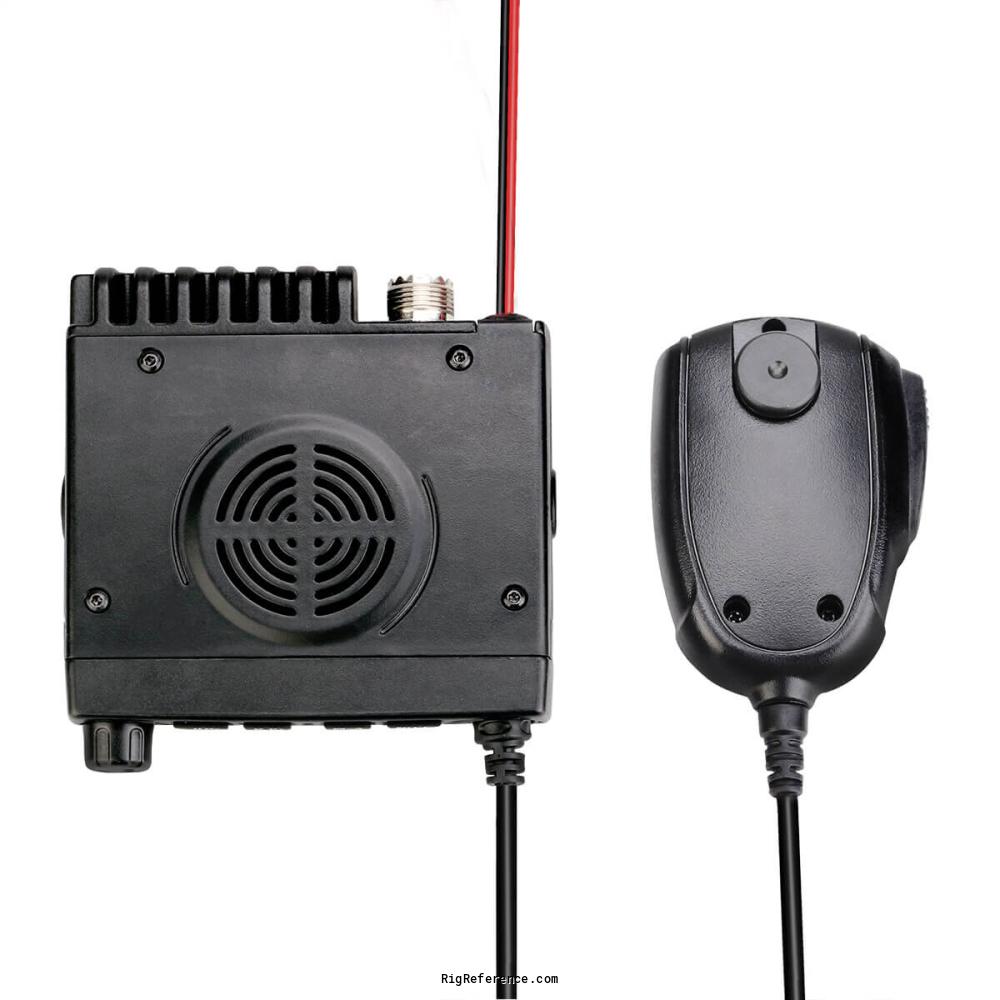

Hand microphone included

Accessories

-

RigReference ID

6716

MPN

RETEVIS-RT000098

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Retevis RT98. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RT98. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis RT98 in Good condition is around:

• USD 84
