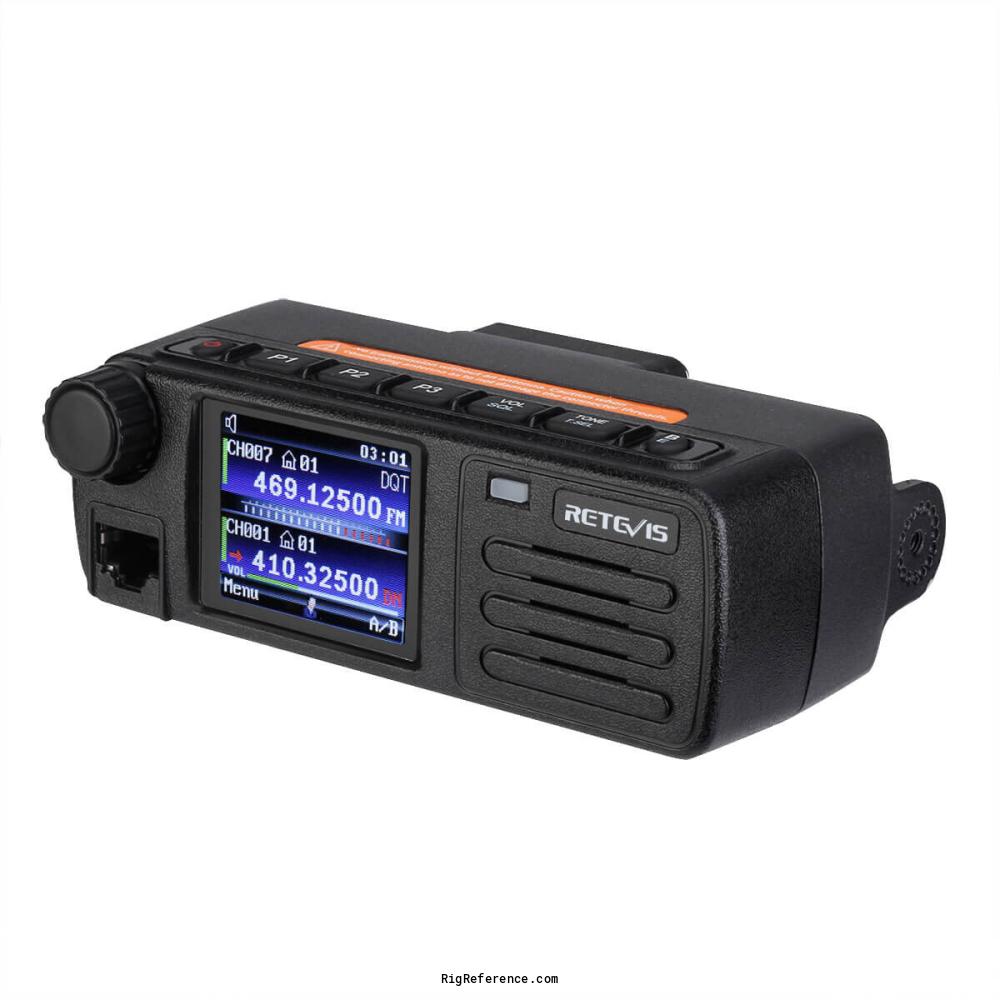

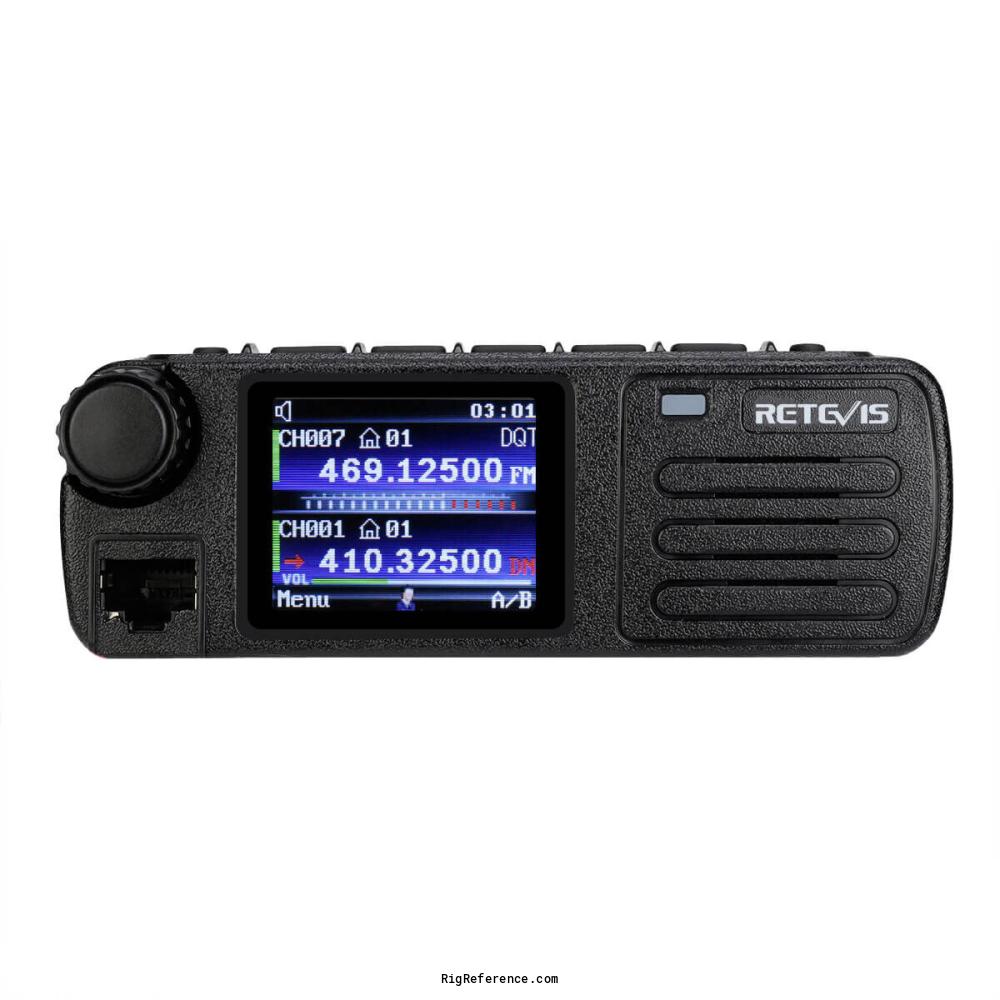

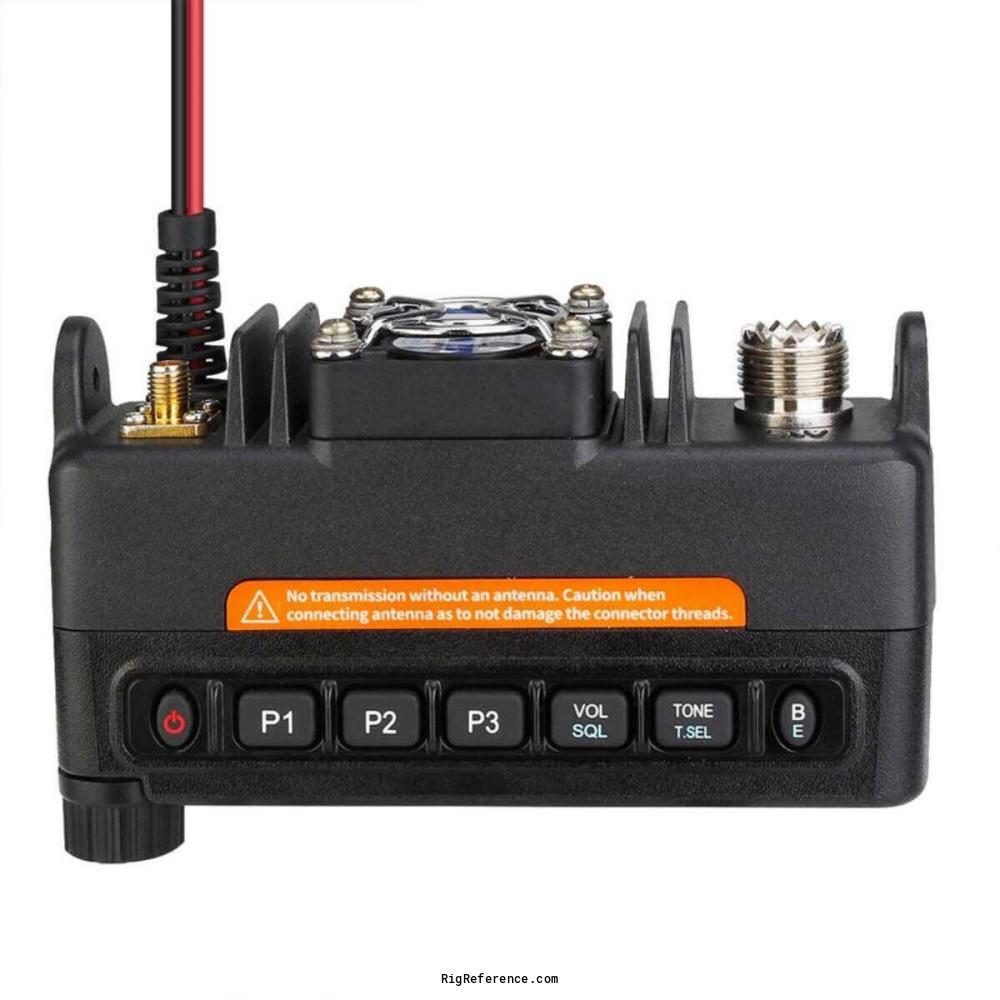

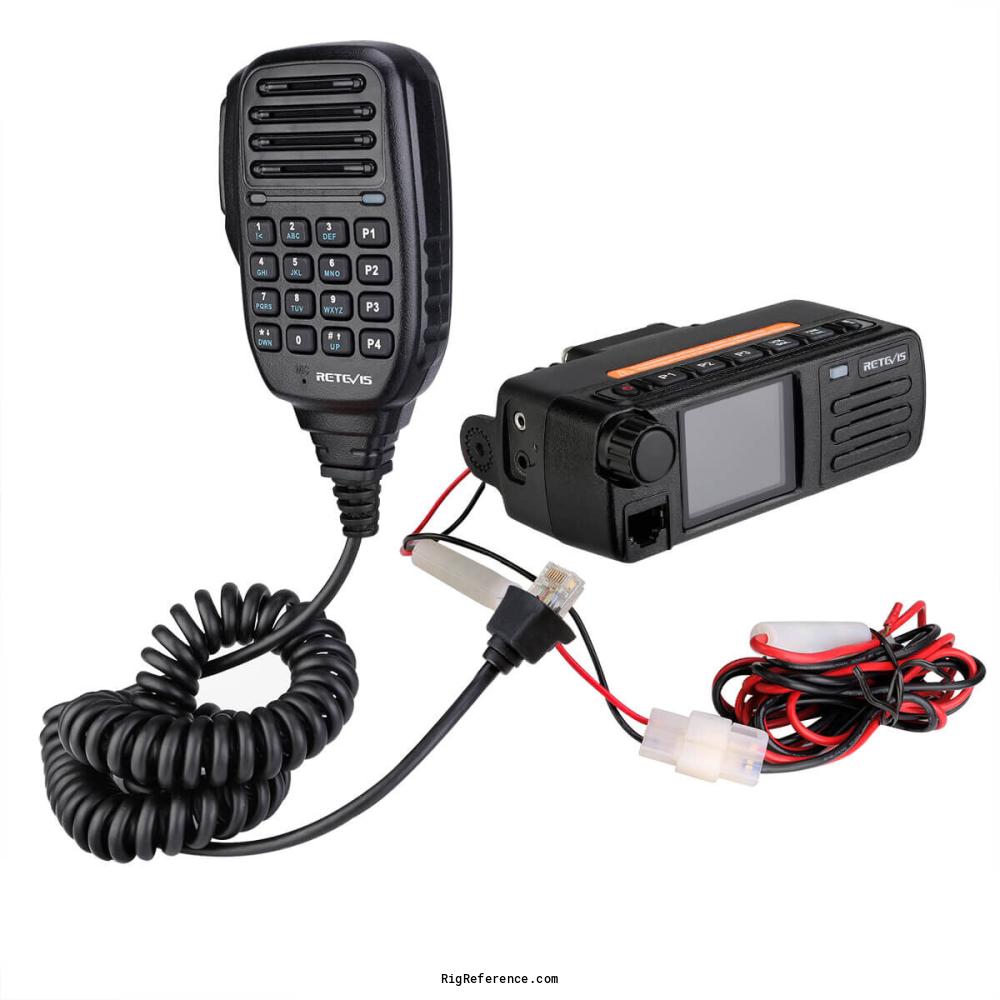

Retevis RT73

General characteristics

HAM bands

2m  70cm

Frequency stability

±1.5 ppm

Tuning steps

?

Memories

4000 channels in bank(s)

Receiver

RX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM   DMR

Sensitivity

Analog: 0.3 / 0.25 µV
Digital (5% BER): 0.25 / 0.2 µV

Selectivity

Adjacent channel: 60 dB (12.5 kHz) / 65 dB (25 kHz)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

500 mW

Transmitter

TX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM   DMR

RF-output

5-20 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

350-460 mA (standby 160 mA)

TX

3 A

Physical

Dimensions (w×h×d)

121 × 42 × 65 mm (4.76 × 1.65 × 2.56 in)

Weight

?

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual-band DMR / analog mini mobile
Built-in GPS and APRS
4000 channels (250 per zone)
200,000 contacts, 20,000 call groups
Single, group and all call
Analog / digital mixed receive

Accessories

-

RigReference ID

6717

MPN

RETEVIS-RT000073
